- Model:
- D7300
- Processing customization:
- Yes
- Types:
- Digital type
- Measuring range:
- arbitrarily set
- Measuring object:
- gas
- Resolution:
- 0.1
- Wind speed:
- 0-30 m/s
- Size:
- 250mm mm
- Weight:
- 0.68 kg
- Power source:
- 24V DC
Tianjin Demir, strength manufacturers, worry-free after-sales, product source, stable performance, high repurchase rate, deeply loved by customers
product introduction
D7300 exhaust duct wind speed transmitter 0- 20m/s wind speed sensor 4- 20mA online digital anemometer,usingstainless steel probe plug-in fixed installation, ordinary length of 100mm, 200mm, 250mm, high temperature length of 300mm, 400mm, other lengths can be customized, temperature resistance of 180℃, divided into two types of integrated and split shapes, plug-in installation, flange fixed, adjustable insertion depth, ordinary wind speed and air volume two measurement modes for customers to set switch. Widely used in photoelectric,air conditioning units, ventilation systems, HVAC engineering, textile and chemical, building automation,high temperature flue gas, industrial waste gas, acid and alkali gas, HVAC, biological medicine, process and environmental control wind speed and air volume measurement
Working principle:hot wire (tungsten wire or platinum wire) or hot film (platinum or chromium film) as the probe, the probe inserted into the hole air pipe fixed, and it is connected to the Wheatstone bridge, through the Wheatstone bridge resistance or current balance relationship, detect the measured section of the air speed/air volume. technical parameters
Measurement medium: air
Operating temperature: -10-60℃
Medium temperature: -20-180℃
Wind speed range: 0~5m/s... 0~10m/s...... 0~20m/s...... 0~40m/S.....& nbsp;0~70m/s (multiple ranges available)
Air volume range: 0~ 9999m ³/min(converted into hours is 60000m ³/h)
Resolution : 0.1m/s, 0.01m/s
Precision : 3%
Display mode: 4-digit LCD digital
Output mode: current 4~ 20mA; voltage 0~ 10V;RS485 (MODBUS); switching value (can be connected to 24V buzzer alarm)
Power supply voltage: 24VDC/AC(±20%),(AC only applies to voltage output type)
Probe : stainless steel
Probe length: 100mm, 150mm, 200mm, 250mm, 500mm (customizable)
Outer shell: ABS
Protection class: IP54
Weight:0.65KGinstallation siteIntegrated installation diagram
Installation position: the principle of selecting the first 5 and the last 3 of the straight pipe section

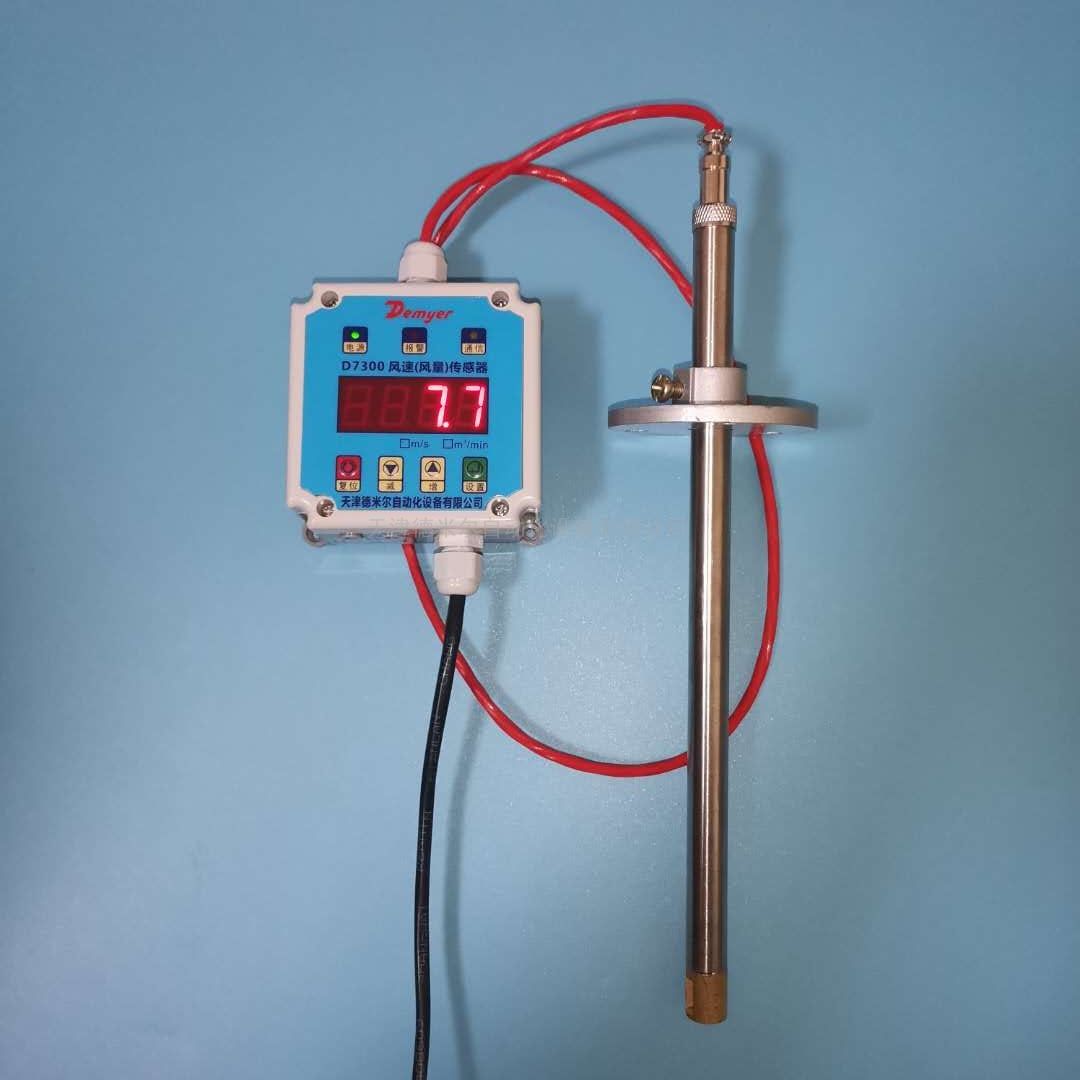

Split installation diagram

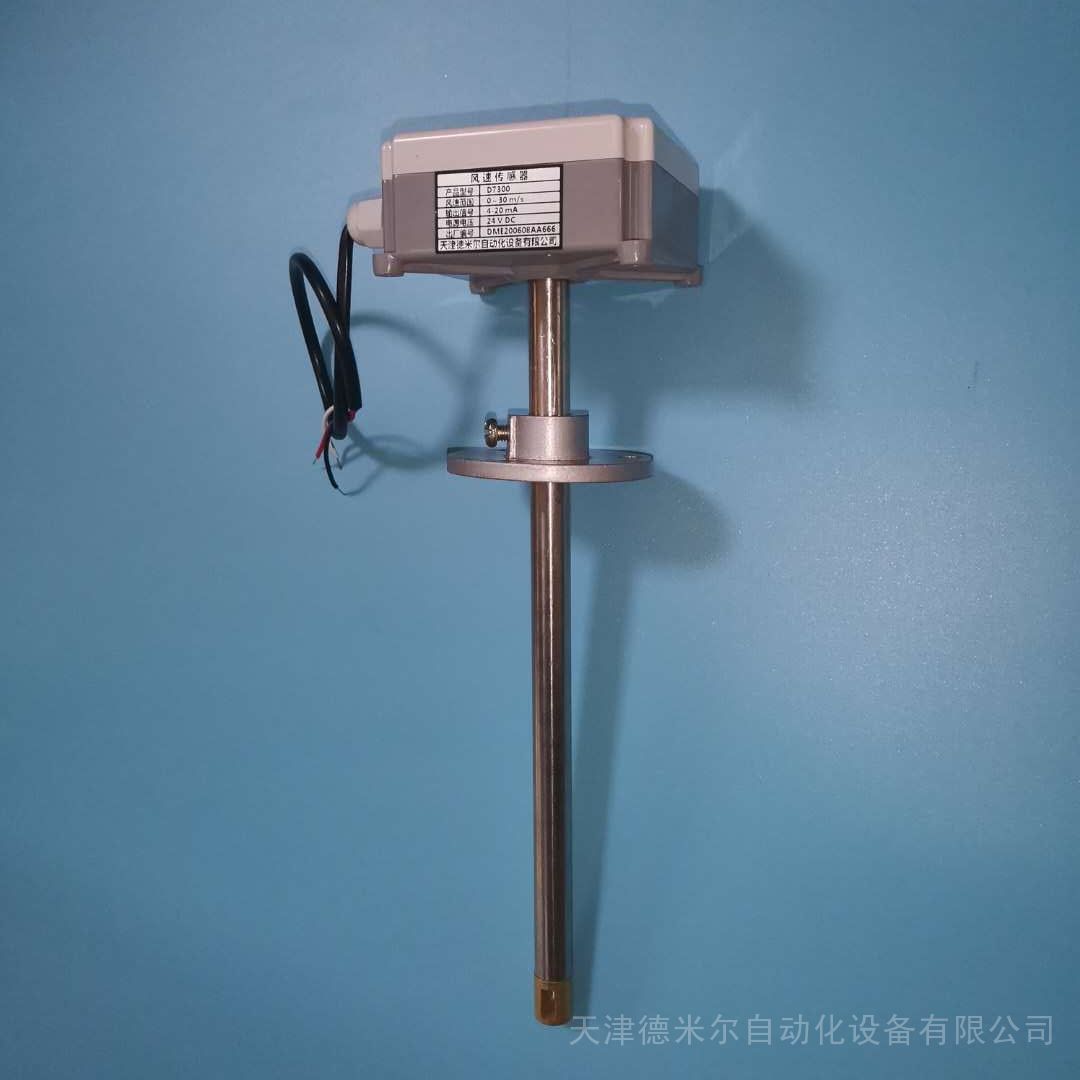

Product physical drawing
D7300 Exhaust duct wind speed transmitter 0-20m/s wind speed sensor 4-20mA online digital anemometer
